Kingtec Direct Drive Unit
KINGTEC YQZ500
⎯⎯⎯⎯⎯
Download the full brochure here
|
TABLE HEADER 1
|
TABLE HEADER 2
|
TABLE HEADER 3
|
TABLE HEADER 4
|
|---|---|---|---|
|

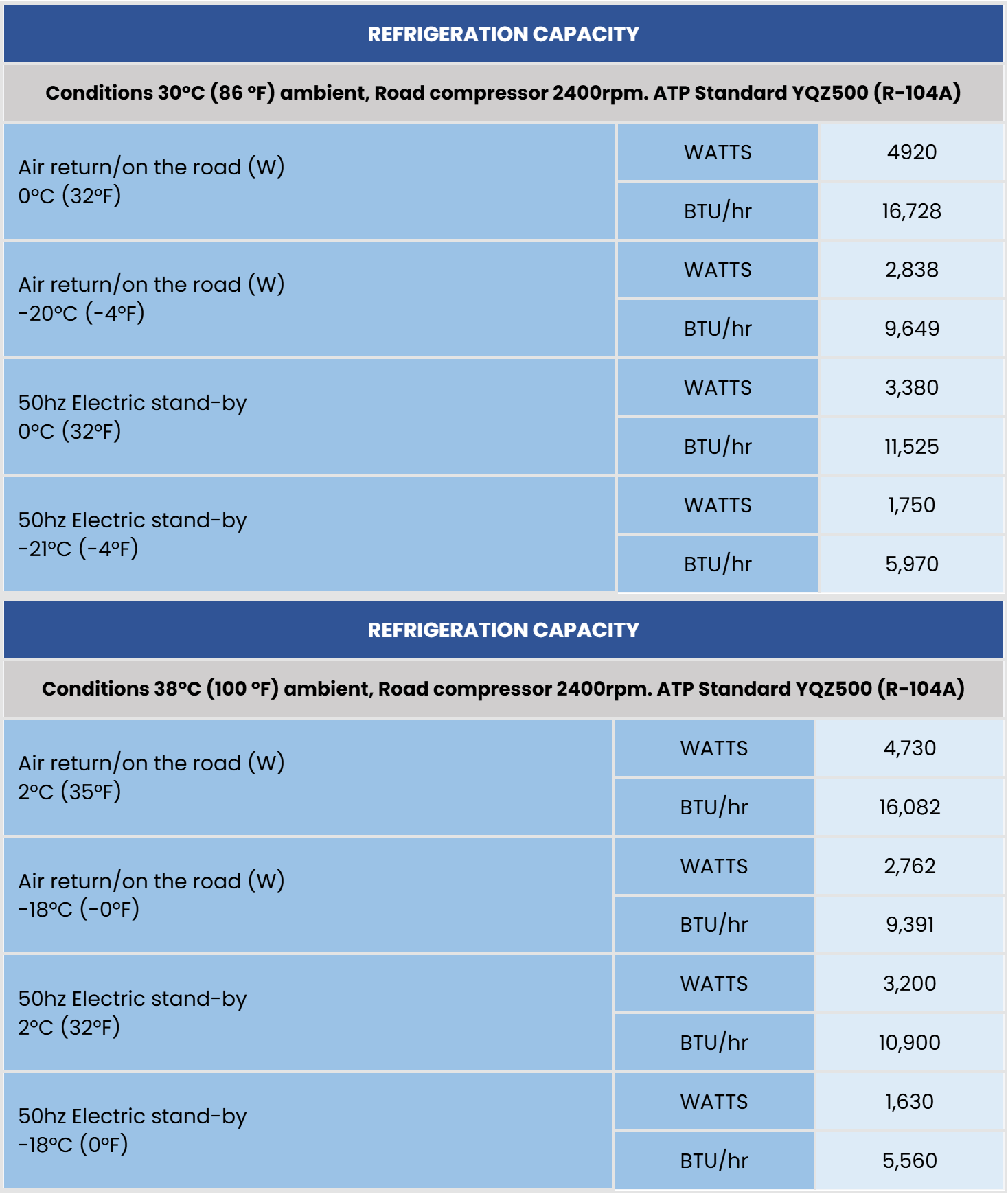

REFRIGERATION CAPACITY
|
|||
|
Conditions 30°C (86 °F) ambient, Road compressor 2400rpm. ATP Standard YQZ500 (R-104A)
|
|||
|
Air return/on the road (W)
0°C (32°F) |
WATTS
|
4920
|
|
|
BTU/hr
|
16,728
|
||
|
Air return/on the road (W)
-20°C (-4°F) |
WATTS
|
2,838
|
|
|
BTU/hr
|
9,649
|
||
|
50hz Electric stand-by
0°C (32°F) |
WATTS
|
3,380
|
|
|
BTU/hr
|
11,525
|
||
|
50hz Electric stand-by
-21°C (-4°F) |
WATTS
|
1,750
|
|
|
BTU/hr
|
5,970
|
||
|
TABLE HEADER 1
|
TABLE HEADER 2
|
TABLE HEADER 3
|
TABLE HEADER 4
|
|---|---|---|---|
|
REFRIGERATION CAPACITY
|
|||
|
Conditions 38°C (100 °F) ambient, Road compressor 2400rpm. ATP Standard YQZ500 (R-104A)
|
|||
|
Air return/on the road (W)
2°C (35°F) |
WATTS
|
4,730
|
|
|
BTU/hr
|
16,082
|
||
|
Air return/on the road (W)
-18°C (-0°F) |
WATTS
|
2,762
|
|
|
BTU/hr
|
9,391
|
||
|
50hz Electric stand-by
2°C (32°F) |
WATTS
|
3,200
|
|
|
BTU/hr
|
10,900
|
||
|
50hz Electric stand-by
-18°C (0°F) |
WATTS
|
1,630
|
|
|
BTU/hr
|
5,560
|
||
Open the table in full view here
KINGTEC YQZ800
⎯⎯⎯⎯⎯
Download the full brochure here
|
TABLE HEADER 1
|
TABLE HEADER 2
|
TABLE HEADER 3
|
TABLE HEADER 4
|
|---|---|---|---|
|

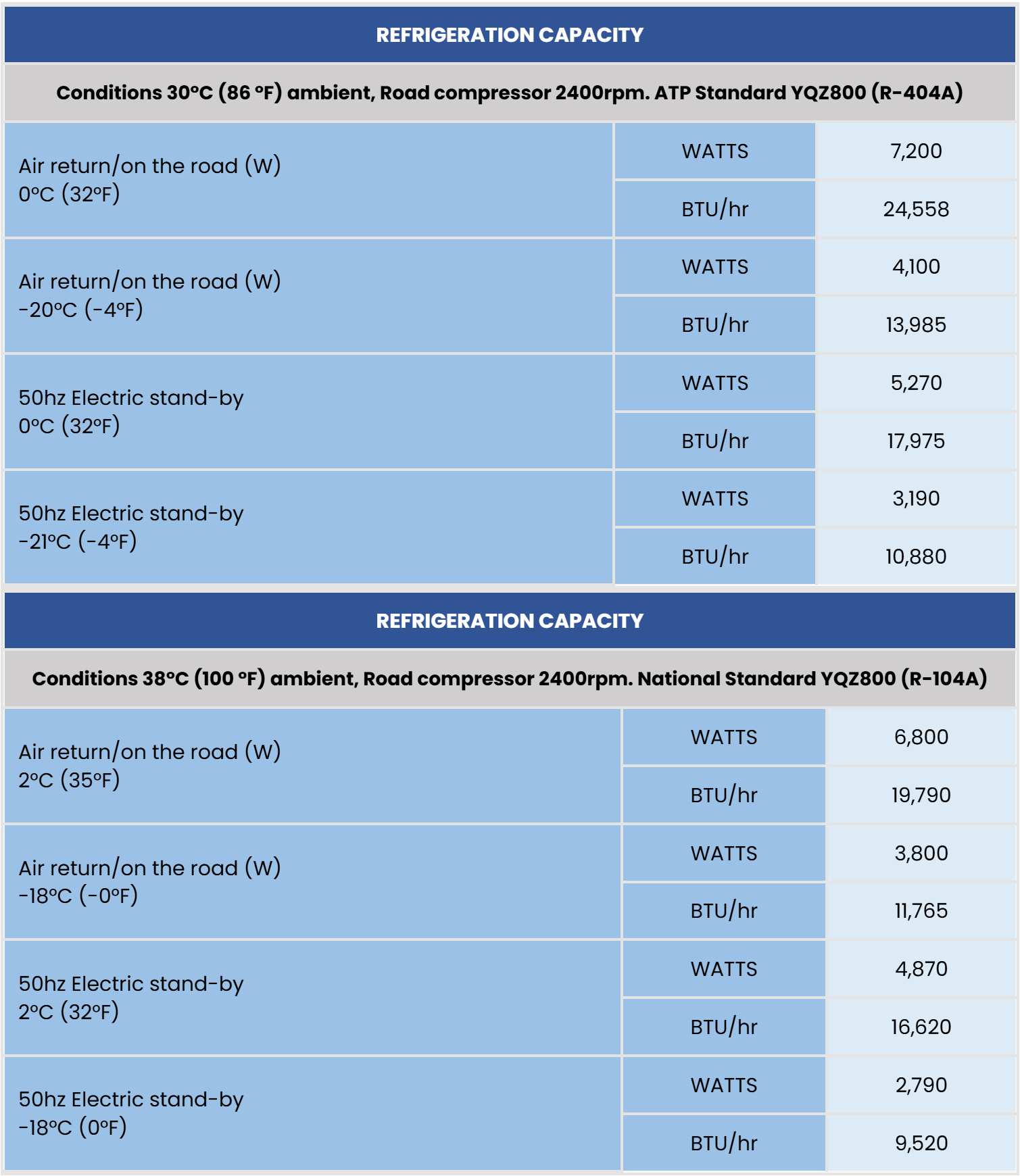

REFRIGERATION CAPACITY
|
|||
|
Conditions 30°C (86 °F) ambient, Road compressor 2400rpm. ATP Standard YQZ800 (R-404A)
|
|||
|
Air return/on the road (W)
0°C (32°F) |
WATTS
|
7,200
|
|
|
BTU/hr
|
24,558
|
||
|
Air return/on the road (W)
-20°C (-4°F) |
WATTS
|
4,100
|
|
|
BTU/hr
|
13,985
|
||
|
50hz Electric stand-by
0°C (32°F) |
WATTS
|
5,270
|
|
|
BTU/hr
|
17,975
|
||
|
50hz Electric stand-by
-21°C (-4°F) |
WATTS
|
3,190
|
|
|
BTU/hr
|
10,880
|
||
|
TABLE HEADER 1
|
TABLE HEADER 2
|
TABLE HEADER 3
|
TABLE HEADER 4
|
|---|---|---|---|
|
REFRIGERATION CAPACITY
|
|||
|
Conditions 38°C (100 °F) ambient, Road compressor 2400rpm. National Standard YQZ800 (R-104A)
|
|||
|
Air return/on the road (W)
2°C (35°F) |
WATTS
|
6,800
|
|
|
BTU/hr
|
19,790
|
||
|
Air return/on the road (W)
-18°C (-0°F) |
WATTS
|
3,800
|
|
|
BTU/hr
|
11,765
|
||
|
50hz Electric stand-by
2°C (32°F) |
WATTS
|
4,870
|
|
|
BTU/hr
|
16,620
|
||
|
50hz Electric stand-by
-18°C (0°F) |
WATTS
|
2,790
|
|
|
BTU/hr
|
9,520
|
||
Open the table in full view here
