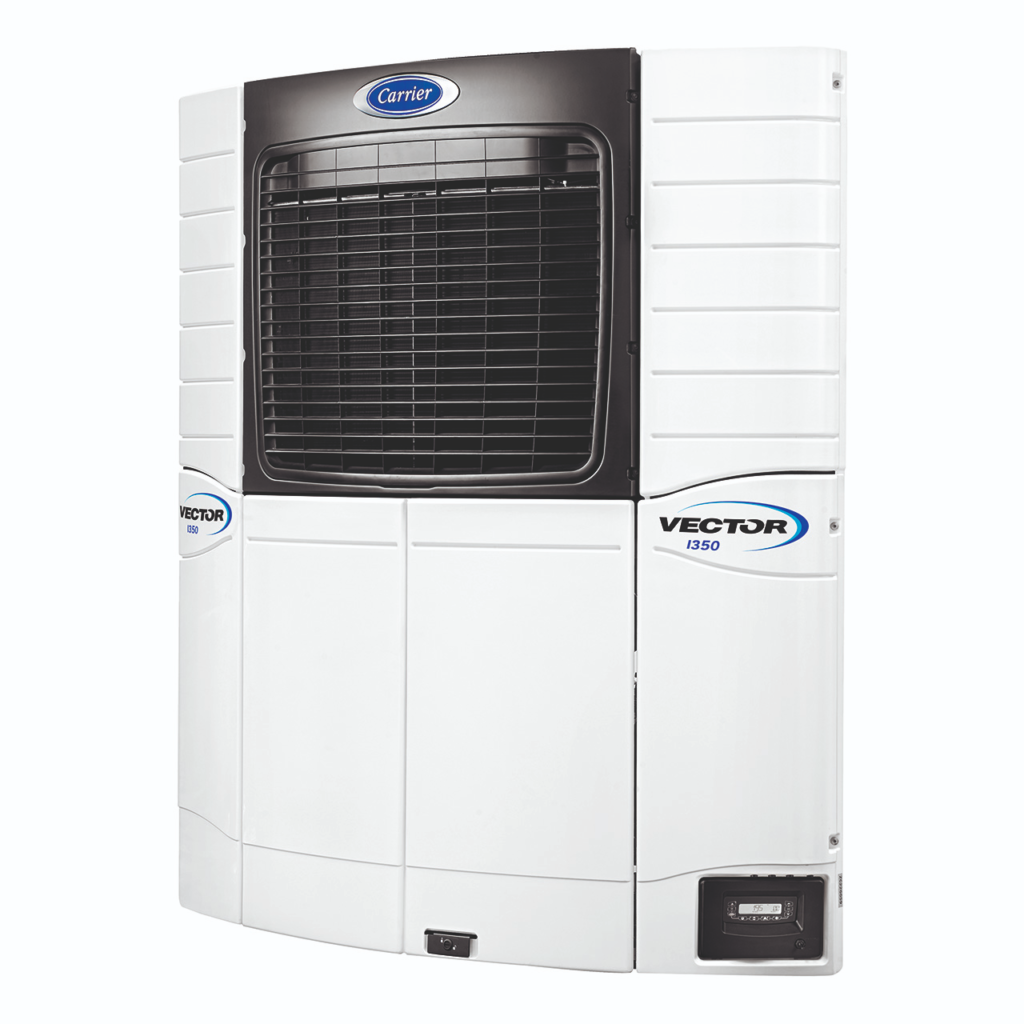

VECTOR 1350
⎯⎯⎯⎯⎯
Download the full brochure here
|
TABLE HEADER 1
|
TABLE HEADER 2
|
TABLE HEADER 3
|
TABLE HEADER 4
|
|---|---|---|---|
|

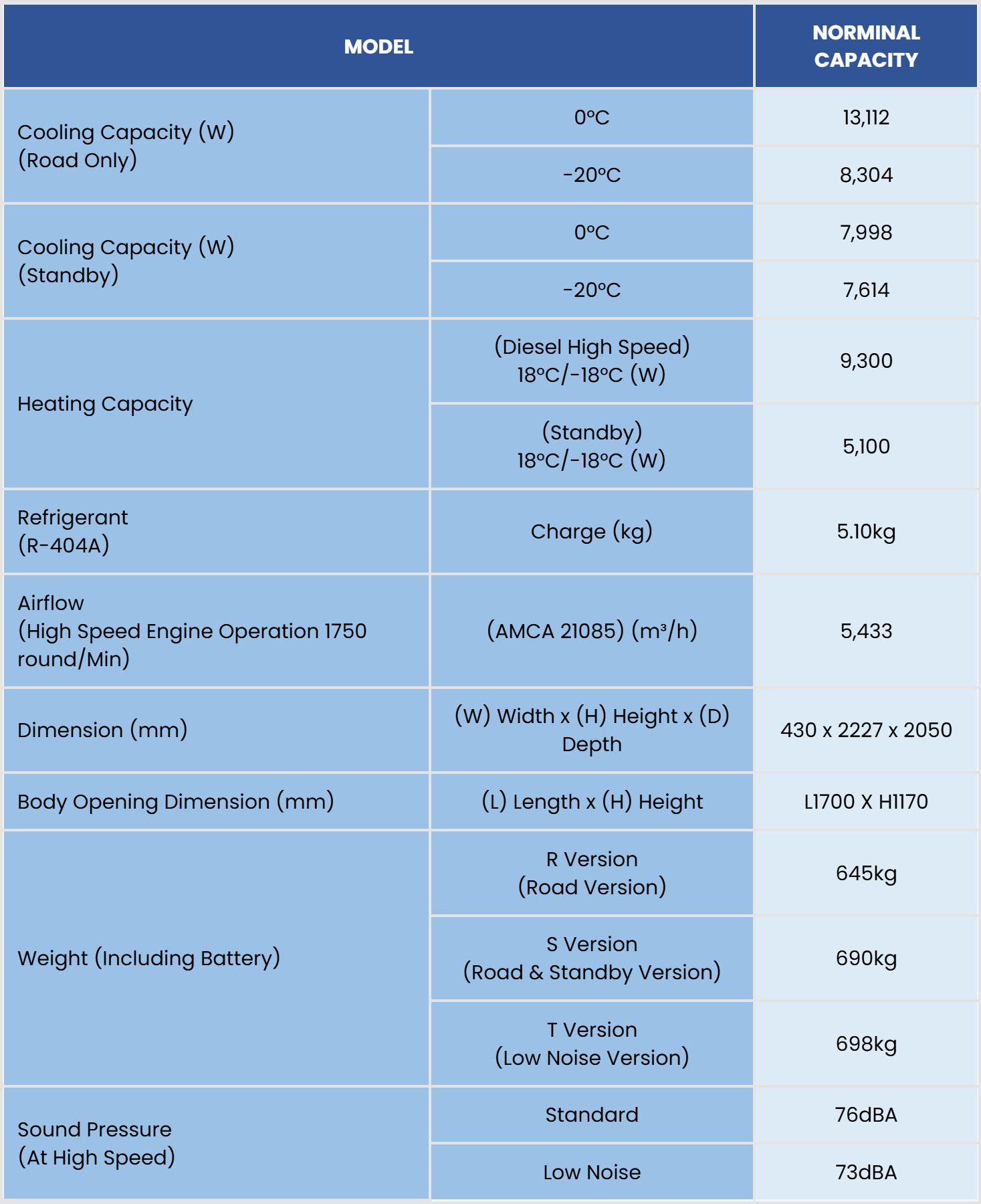

MODEL
|
NORMINAL CAPACITY
|
||
|
Cooling Capacity (W)
(Road Only) |
0°C
|
13,112
|
|
|
-20°C
|
8,304
|
||
|
Cooling Capacity (W)
(Standby) |
0°C
|
7,998
|
|
|
-20°C
|
7,614
|
||
|
Heating Capacity
|
(Diesel High Speed)
18°C/-18°C (W) |
9,300
|
|
|
(Standby)
18°C/-18°C (W) |
5,100
|
||
|
Refrigerant
(R-404A) |
Charge (kg)
|
5.10kg
|
|
|
Airflow
(High Speed Engine Operation 1750 round/Min) |
(AMCA 21085) (m³/h)
|
5,433
|
|
|
Dimension (mm)
|
(W) Width x (H) Height x (D) Depth
|
430 x 2227 x 2050
|
|
|
Body Opening Dimension (mm)
|
(L) Length x (H) Height
|
L1700 X H1170
|
|
|
Weight (Including Battery)
|
R Version
(Road Version) |
645kg
|
|
|
S Version
(Road & Standby Version) |
690kg
|
||
|
T Version
(Low Noise Version) |
698kg
|
||
|
Sound Pressure
(At High Speed) |
Standard
|
76dBA
|
|
|
Low Noise
|
73dBA
|
||
Open the table in full view here

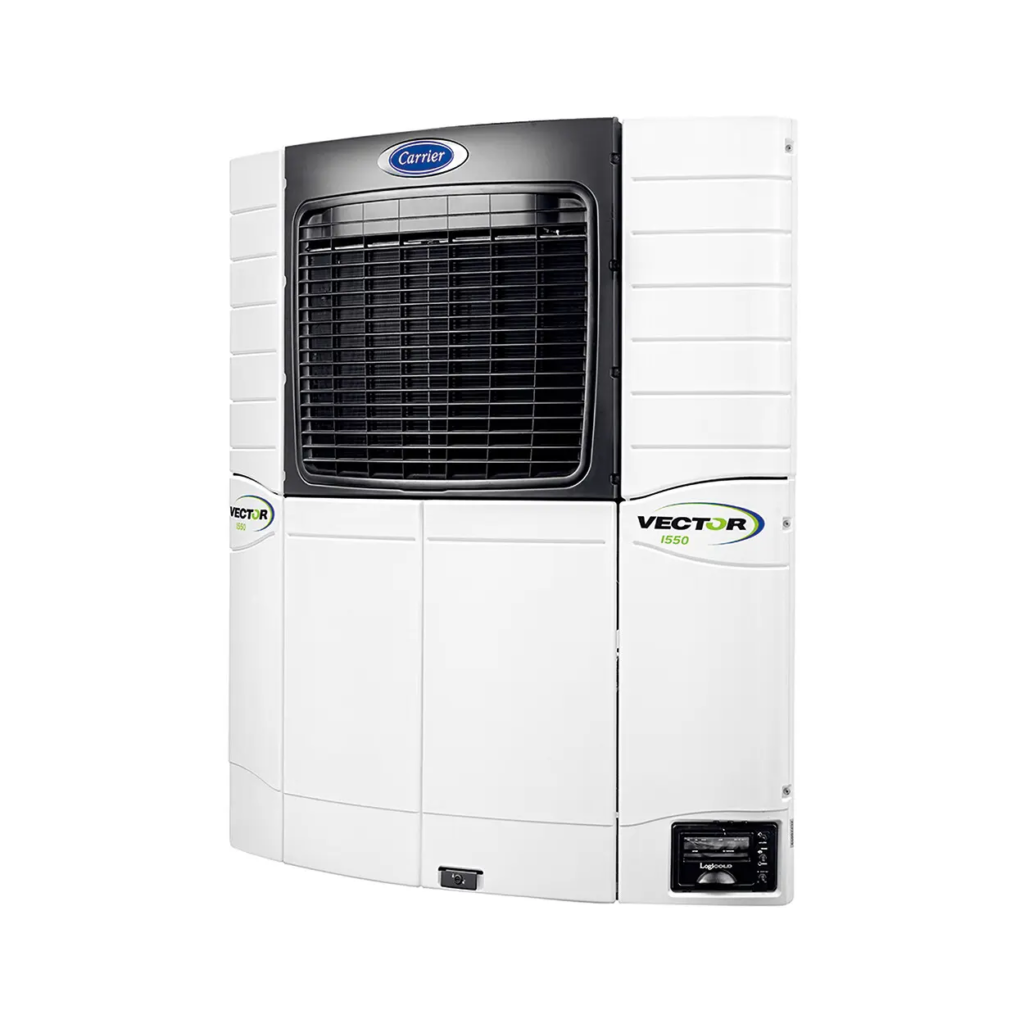

VECTOR 1550
⎯⎯⎯⎯⎯
|
TABLE HEADER 1
|
TABLE HEADER 2
|
TABLE HEADER 3
|
TABLE HEADER 4
|
|---|---|---|---|
|

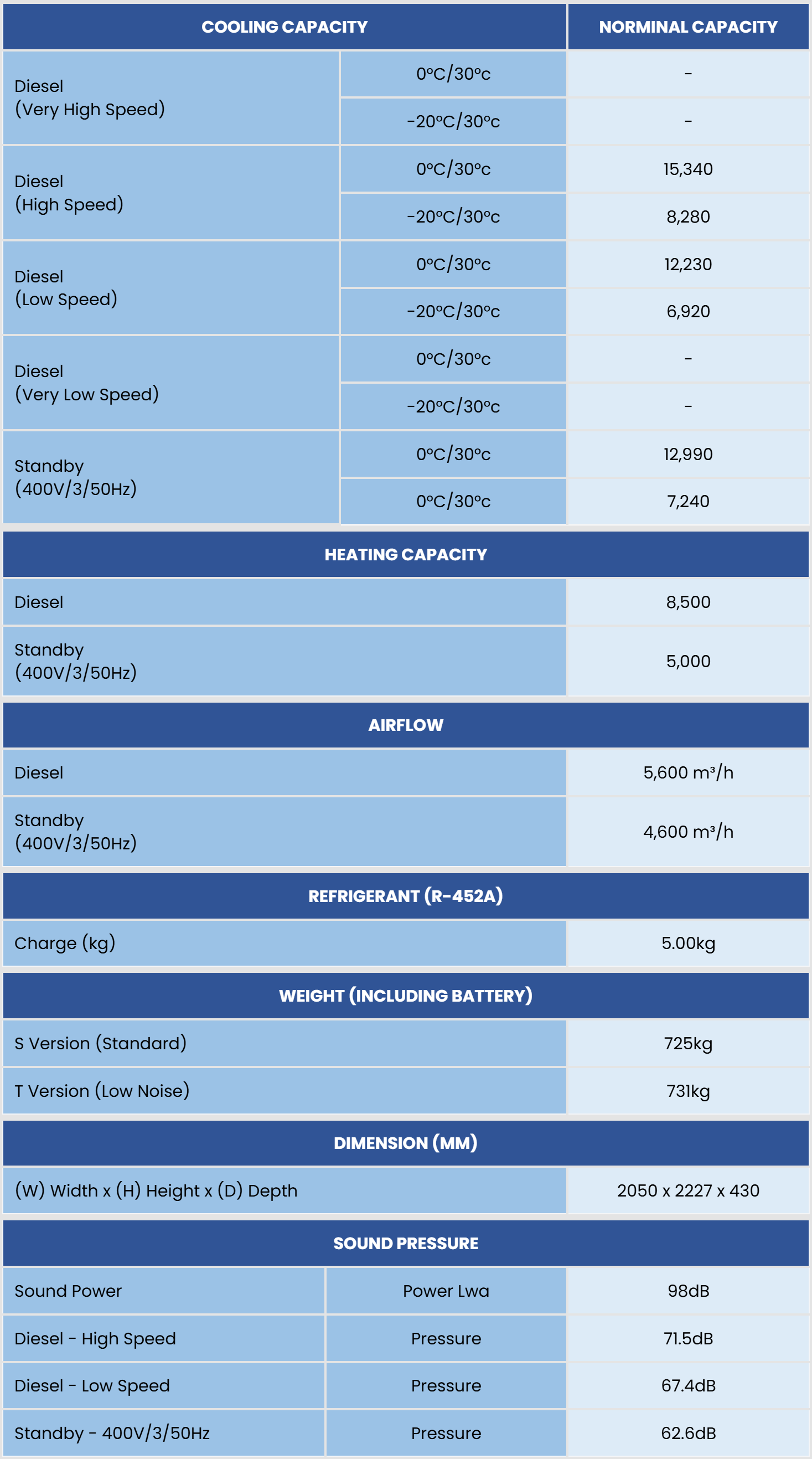

COOLING CAPACITY
|
NORMINAL CAPACITY
|
||
|
Diesel
(Very High Speed) |
0°C/30°c
|
-
|
|
|
-20°C/30°c
|
-
|
||
|
Diesel
(High Speed) |
0°C/30°c
|
15,340
|
|
|
-20°C/30°c
|
8,280
|
||
|
Diesel
(Low Speed) |
0°C/30°c
|
12,230
|
|
|
-20°C/30°c
|
6,920
|
||
|
Diesel
(Very Low Speed) |
0°C/30°c
|
-
|
|
|
-20°C/30°c
|
-
|
||
|
Standby
(400V/3/50Hz) |
0°C/30°c
|
12,990
|
|
|
0°C/30°c
|
7,240
|
||
|
TABLE HEADER 1
|
TABLE HEADER 2
|
TABLE HEADER 3
|
TABLE HEADER 4
|
|---|---|---|---|
|
HEATING CAPACITY
|
|||
|
Diesel
|
8,500
|
||
|
Standby
(400V/3/50Hz) |
5,000
|
||
|
TABLE HEADER 1
|
TABLE HEADER 2
|
TABLE HEADER 3
|
TABLE HEADER 4
|
|---|---|---|---|
|
AIRFLOW
|
|||
|
Diesel
|
5,600 m³/h
|
||
|
Standby
(400V/3/50Hz) |
4,600 m³/h
|
||
|
TABLE HEADER 1
|
TABLE HEADER 2
|
TABLE HEADER 3
|
TABLE HEADER 4
|
|---|---|---|---|
|
REFRIGERANT (R-452A)
|
|||
|
Charge (kg)
|
5.00kg
|
||
|
TABLE HEADER 1
|
TABLE HEADER 2
|
TABLE HEADER 3
|
TABLE HEADER 4
|
|---|---|---|---|
|
WEIGHT (INCLUDING BATTERY)
|
|||
|
S Version (Standard)
|
725kg
|
||
|
T Version (Low Noise)
|
731kg
|
||
|
TABLE HEADER 1
|
TABLE HEADER 2
|
TABLE HEADER 3
|
TABLE HEADER 4
|
|---|---|---|---|
|
DIMENSION (MM)
|
|||
|
(W) Width x (H) Height x (D) Depth
|
2050 x 2227 x 430
|
||
|
TABLE HEADER 1
|
TABLE HEADER 2
|
TABLE HEADER 3
|
TABLE HEADER 4
|
|---|---|---|---|
|
SOUND PRESSURE
|
|||
|
Sound Power
|
Power Lwa
|
98dB
|
|
|
Diesel - High Speed
|
Pressure
|
71.5dB
|
|
|
Diesel - Low Speed
|
Pressure
|
67.4dB
|
|
|
Standby - 400V/3/50Hz
|
Pressure
|
62.6dB
|
|
Open the table in full view here

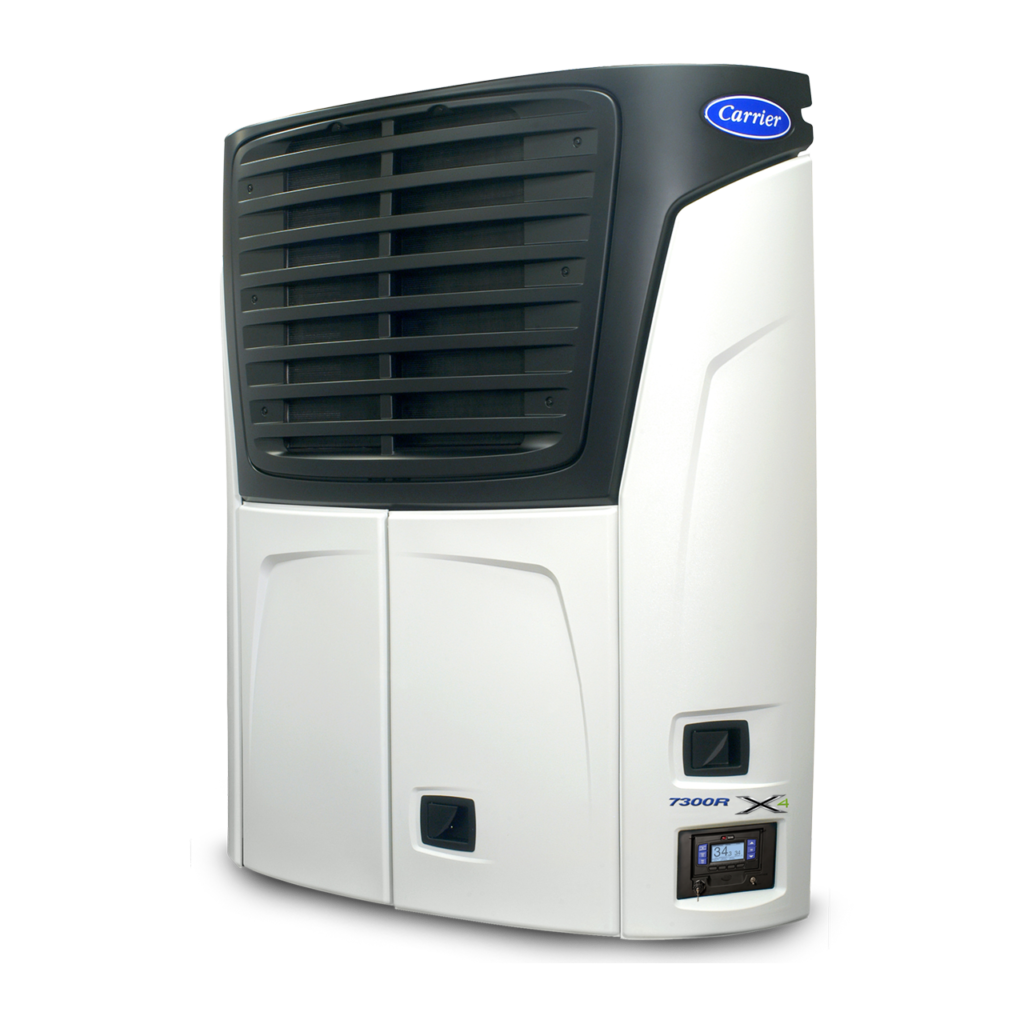

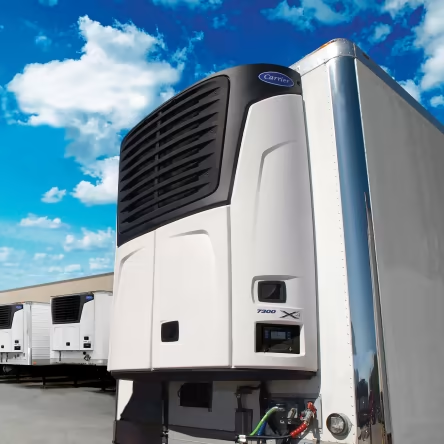

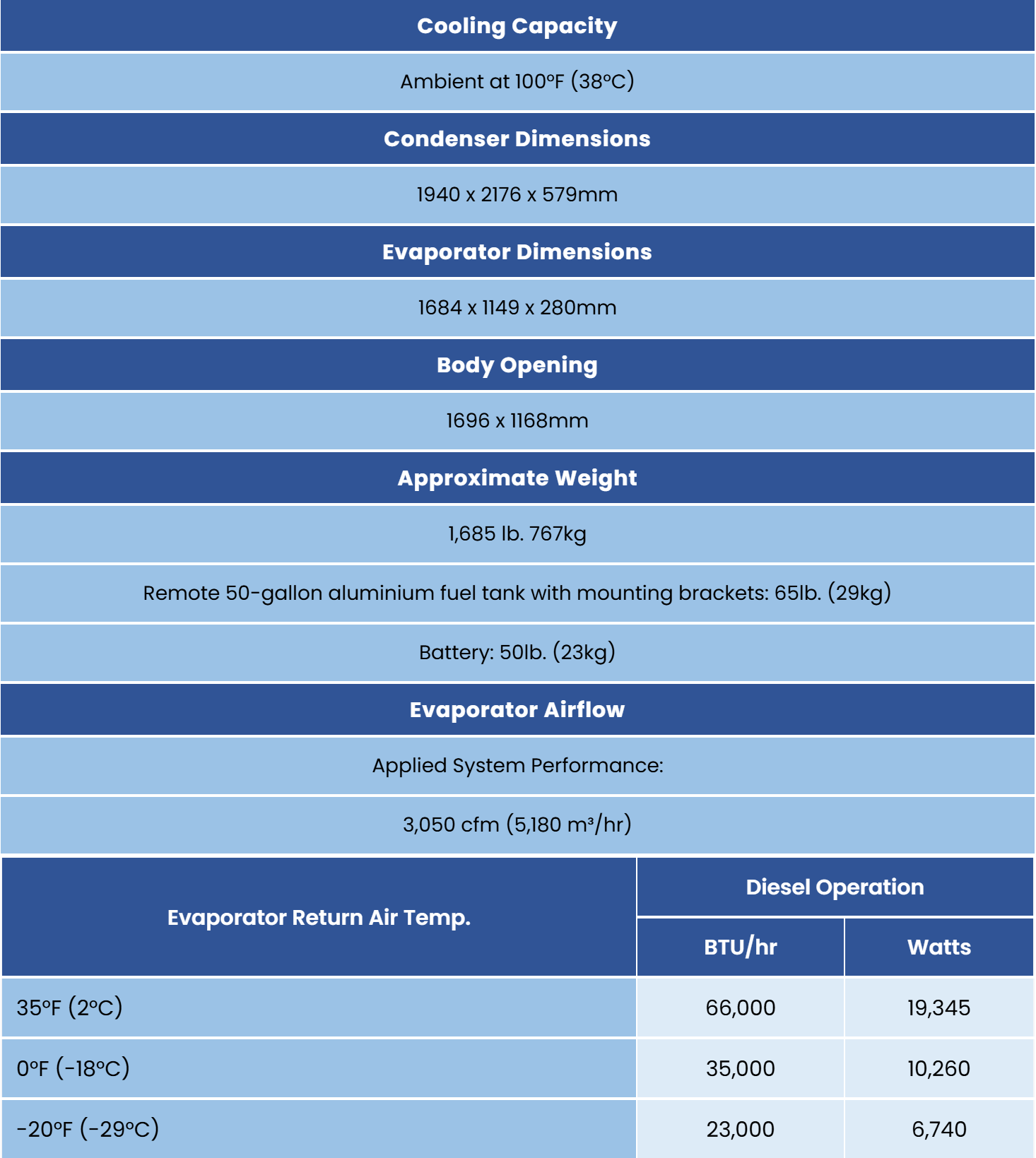

X4 7300
⎯⎯⎯⎯⎯
| Cooling Capacity |
|---|
|
Ambient at 100°F (38°C)
|
| Condenser Dimensions |
|---|
|
1940 x 2176 x 579mm
|
| Evaporator Dimensions |
|---|
|
1684 x 1149 x 280mm
|
| Body Opening |
|---|
|
1696 x 1168mm
|
| Approximate Weight |
|---|
|
1,685 lb. 767kg
|
|
Remote 50-gallon aluminium fuel tank with mounting brackets: 65lb. (29kg)
|
|
Battery: 50lb. (23kg)
|
| Evaporator Airflow |
|---|
|
Applied System Performance:
|
|
3,050 cfm (5,180 m³/hr)
|
|
|
||
|---|---|---|
|
Evaporator Return Air Temp.
|
Diesel Operation
|
|
|
BTU/hr
|
Watts
|
|
|
35°F (2°C)
|
66,000
|
19,345
|
|
0°F (-18°C)
|
35,000
|
10,260
|
|
-20°F (-29°C)
|
23,000
|
6,740
|
Open the table in full view here

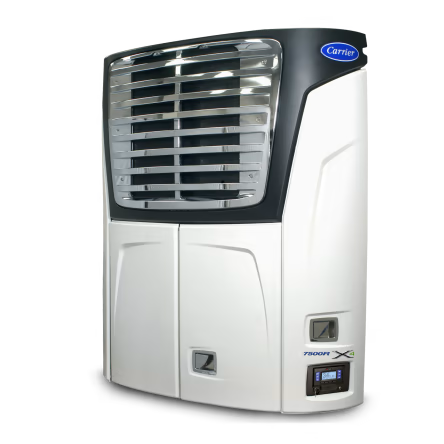

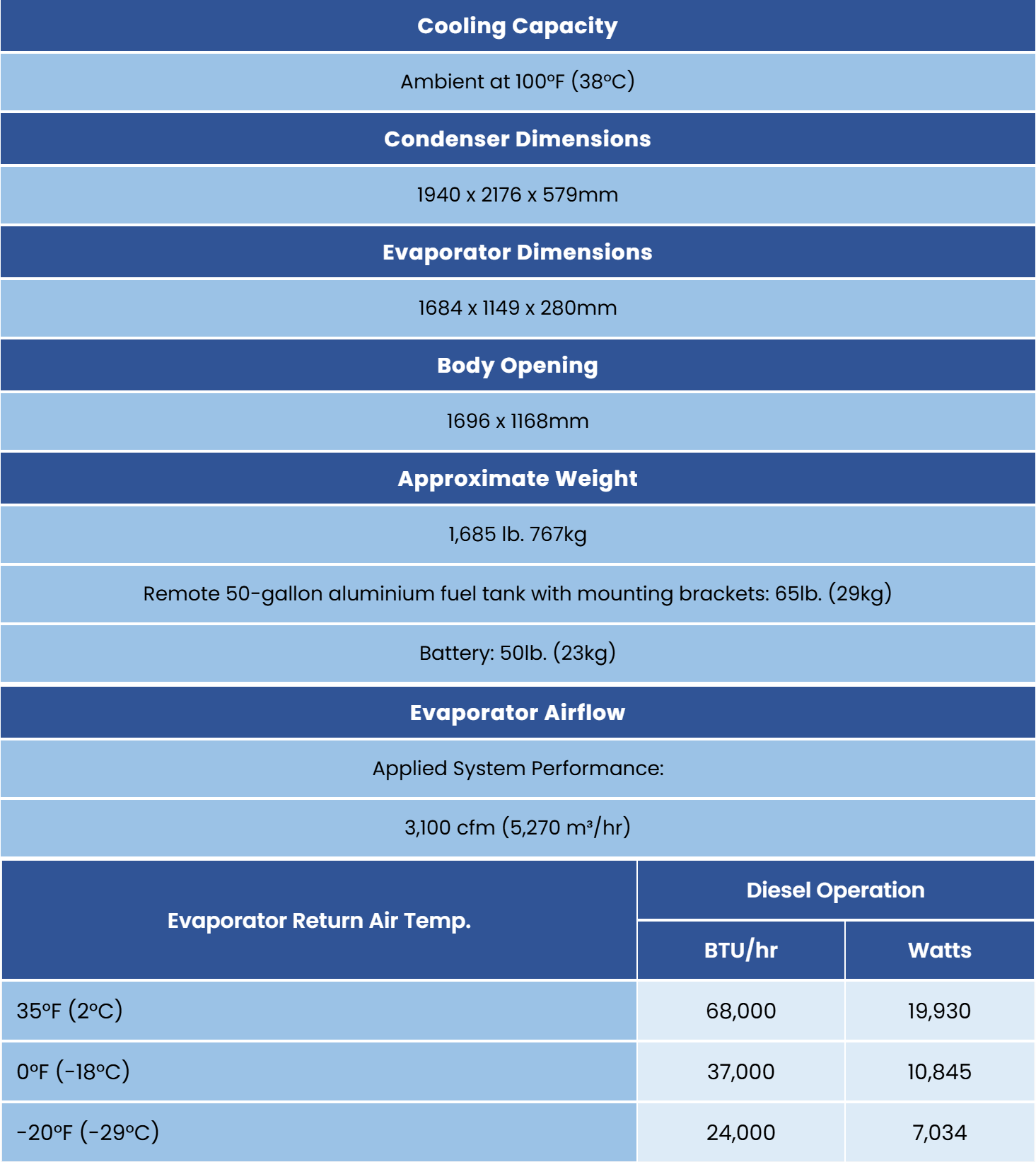

X4 7500
⎯⎯⎯⎯⎯
| Cooling Capacity |
|---|
|
Ambient at 100°F (38°C)
|
| Condenser Dimensions |
|---|
|
1940 x 2176 x 579mm
|
| Evaporator Dimensions |
|---|
|
1684 x 1149 x 280mm
|
| Body Opening |
|---|
|
1696 x 1168mm
|
| Approximate Weight |
|---|
|
1,685 lb. 767kg
|
|
Remote 50-gallon aluminium fuel tank with mounting brackets: 65lb. (29kg)
|
|
Battery: 50lb. (23kg)
|
| Evaporator Airflow |
|---|
|
Applied System Performance:
|
|
3,100 cfm (5,270 m³/hr)
|
|
|
||
|---|---|---|
|
Evaporator Return Air Temp.
|
Diesel Operation
|
|
|
BTU/hr
|
Watts
|
|
|
35°F (2°C)
|
68,000
|
19,930
|
|
0°F (-18°C)
|
37,000
|
10,845
|
|
-20°F (-29°C)
|
24,000
|
7,034
|
