THE ICE-CREAM TRANSPORTER
Loading
Charging
Ready To
Distribute
Distributing
Danso Eutectic
“The World Most Preferred”

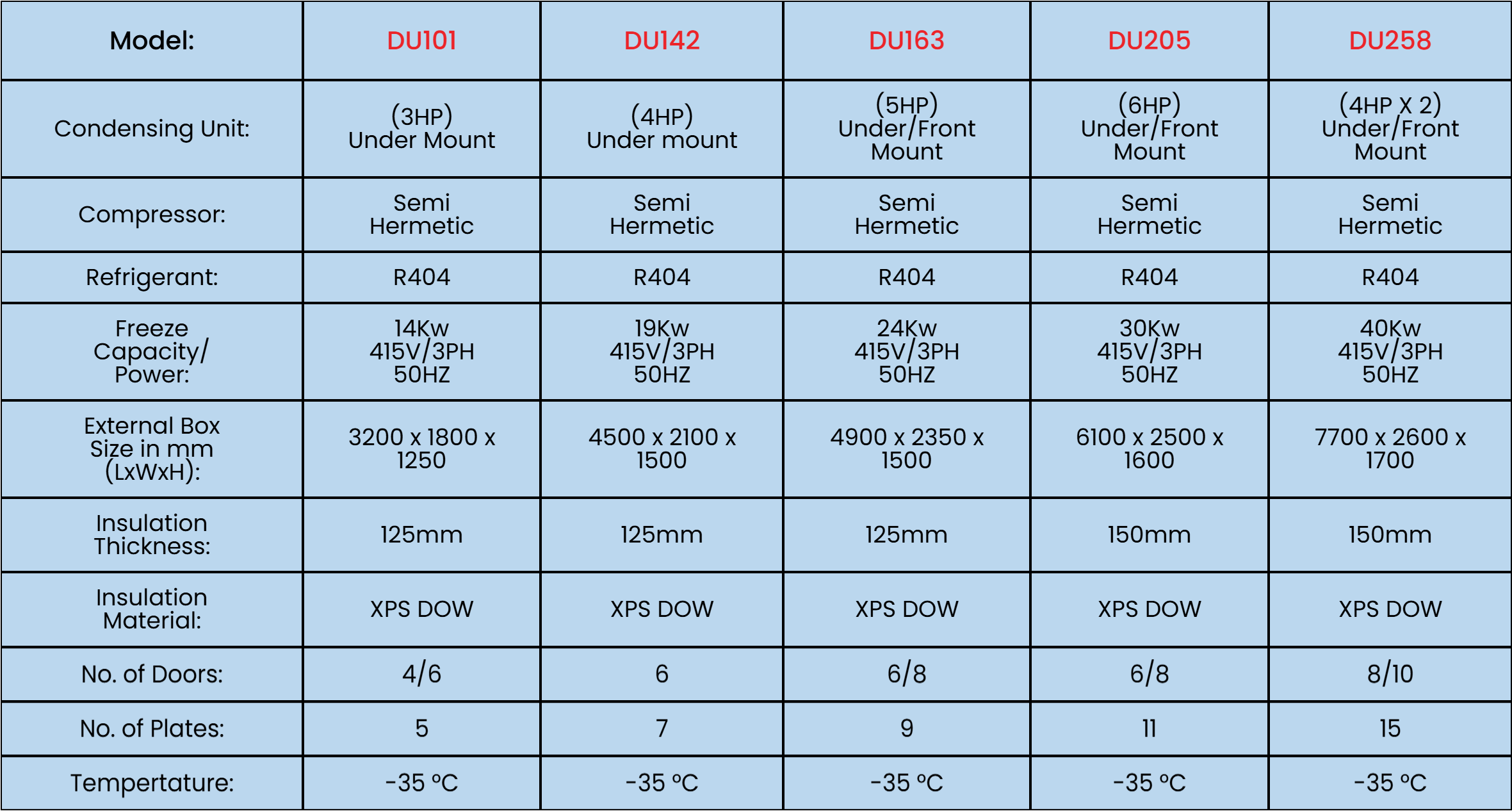

| Model: | DU101 | DU142 | DU163 | DU205 | DU258 |
|---|---|---|---|---|---|
|
Condensing Unit: |
(3HP) Under Mount |
(4HP) Under mount |
(5HP) Under/Front Mount |
(6HP) Under/Front Mount |
(4HP X 2) Under/Front Mount |
|
Compressor: |
Semi Hermetic |
Semi Hermetic |
Semi Hermetic |
Semi Hermetic |
Semi Hermetic |
|
Refrigerant: |
R404 |
R404 |
R404 |
R404 |
R404 |
|
Freeze Capacity/ Power: |
14Kw 415V/3PH 50HZ |
19Kw 415V/3PH 50HZ |
24Kw 415V/3PH 50HZ |
30Kw 415V/3PH 50HZ |
40Kw 415V/3PH 50HZ |
|
External Box Size in mm (LxWxH): |
3200 x 1800 x 1250 |
4500 x 2100 x 1500 |
4900 x 2350 x 1500 |
6100 x 2500 x 1600 |
7700 x 2600 x 1700 |
|
Insulation Thickness: |
125mm |
125mm |
125mm |
150mm |
150mm |
|
Insulation Material: |
XPS DOW |
XPS DOW |
XPS DOW |
XPS DOW |
XPS DOW |
|
No. of Doors: |
4/6 |
6 |
6/8 |
6/8 |
8/10 |
|
No. of Plates: |
5 |
7 |
9 |
11 |
15 |
|
Tempertature: |
-35 °C |
-35 °C |
-35 °C |
-35 °C |
-35 °C |
